ISOBOX

Description
Specs
Documents
Certifications

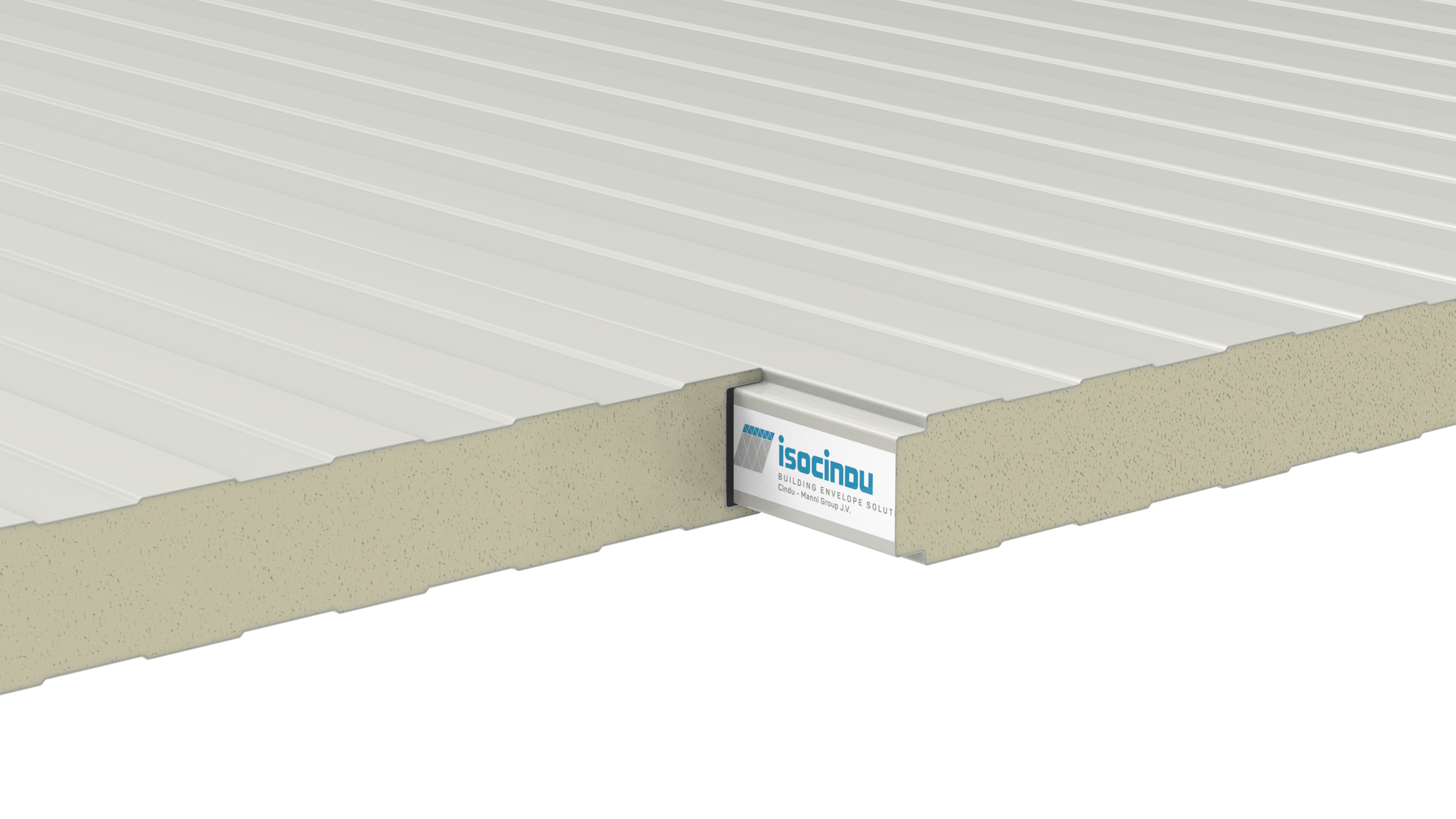

Isobox polyurethane wall panel, with micro-ribbed finishing and visible fixing. It can be installed vertically or horizontally

Isobox is a sandwich panel used for cladding in the walls of industrial buildings and internal partitions. The tongue-and-groove joint features exposed fastening with through screws. The external face is available in plissé, box, and piano profiles. The internal face is in a box profile with a PVC finish. It is recommended to use the PVC finish on both sides for internal walls only. Suitable for cold storage rooms.

availability region

Market: ITALY, USA, MEXICO, SPAIN, GERMANY, FRANCE, ROMANIA, CZECH REPUBLIC AND MEXICO

FEATURES

Double skin metal faced panel with micro-ribbed finishing
Polyurethane insulation
Joint with visible fixing
It can be installed vertically or horizontally

COLORS

Signal White RAL 9003
Pure White RAL 9010
White Grey Ral 9002
Silver Grey RAL 9006
Anthracite Grey RAL 7016

TECHNICAL FILES

DOCUMENTATION

TECHNICAL SUPPORT

PRODUCT CERTIFICATIONS

CERTIFICATIONS' DETAILS

Casella Vuota: Prodotto non producibile
Senza certificato
Producibile certificato
Certificato per estensione
Performance rilasciabile con Nota Tecnica

Fire reaction

Fire reaction

fire reaction - description

Classification	Isolation	Category
B s1 d0*	Foam	Fire reaction
B s2 d0	Foam	Fire reaction
B s3 d0	Foam	Fire reaction
C s3 d0	Foam	Fire reaction

Fire resistance

Fire resistance

fire resistance - description

Classification	Isolation	Category
EI 30*	Foam	Fire resistance
EI 20*	Foam	Fire resistance
EI 15*	Foam	Fire resistance
EI 15 (ceiling)	Foam	Fire resistance
EW 60*	Foam	Fire resistance

Benefits

- Suitable for controlled temperatures
- High Mechanical and Thermal Resistance
- Available in 1150 mm (45¼ in width)
- Hygienic and Easy to Clean
- Lower Installation Cost
- Lower Maintenance Cost
- Low Environmental Impact

Features

Thickness up to 8": Isobox is manufactured in a wide range of thicknesses, expanding the number of options available to meet the requirements of any industrial sector. Panels are available in thicknesses ranging from 1” to 8”, a unique offering in the market provided by IsoCindu for the most demanding industrial sectors.

Effective Width: Isobox panels are available in widths of 1000 mm and 1150 mm. The panel with an effective width of 1150 mm offers up to 15% faster installation, helps reduce the amount of structural support required in a project, decreases the number of fasteners, and optimizes freight efficiency by allowing more square meters per shipment unit.

Coatings and Colors: The coatings are a durable polyvinyl system containing 70% Kynar or Hylar resins. This system provides excellent chemical adhesion and resistance to ultraviolet radiation, offering exceptional color retention and resistance to peeling and chemical degradation.
